Kicksecure can be installed inside of VirtualBox. Here are detailed instructions.

GUI

Kicksecure in VirtualBox

  • Kicksecure with Xfce Graphical User Interface.
  • This version of Kicksecure is designed to run inside VirtualBox.
  • Beginner-friendly and easy to use.
  • It is the right choice for most users.

Please follow these steps to install Kicksecure Xfce for VirtualBox.

Download Kicksecure Xfce

Kicksecure Xfce is available for Windows, MacOS and Linux

Optional: Digital signature verification.

Version: 17.0.4.5

  • Digital signatures: A tool enhancing download security. Commonly used across the internet.
  • Learn more: Curious? Learn more about digital software signatures.
  • Optional: Digital signatures are optional. If you've never used them before, there might be no need to start now.
  • No worries: New to digital software signatures? It's okay, no need to worry.
  • Not a requirement: Not mandatory for using Kicksecure, but an extra security measure for advanced users.

How to verify the Kicksecure Images : Kicksecure virtual machine images are signed by Kicksecure developer Patrick Schleizer using OpenPGP and signify.

Do you already how to perform digital software verification using an OpenPGP and/or signify key?

Install VirtualBox

Download and install VirtualBox for your operating system.

Windows

Download VirtualBox for Windows (FREE!) WINDOWS

Optional: Digital signature verification.

VirtualBox for Windows is not signed with OpenPGP / gpg. It is signed with authenticode.

After downloading the VirtualBox installer exe and starting it, the user should verify that sure that Verified publisher: is Oracle Corporation.

Figure: Windows signature signature verification window for VirtualBox

Advanced users might wish to learn more about Authenticode (Windows Digital Software Signatures) The Web Archive Onion Version to perform a deeper verification.

macOS

Download VirtualBox for macOS (FREE!) OSX

Optional: Digital signature verification.

VirtualBox for macOS is not signed with OpenPGP / gpg. It is notarized for macOS's gatekeeper. See also Apple's official documentation Safely open apps on your Macarchive.org.

Ubuntu

Ubuntu host operating systems:

Chose an option from the following table. Choose either Option A) or Option B).

Option Name Details
A) Automated VirtualBox Installation Ubuntu users could alternatively use the Kicksecure Linux Installer for VirtualBox. In this case, this wiki page can be completely ignored. No other steps from this wiki page need to be applied because the automated installer will handle everything.
B) Manual VirtualBox Installation Follow the instructions below.

Tested on October 2022 using Ubuntu version 22.04. Older versions are not recommended.

Command Line (All Users)

1. On the host.

Open a terminal.

2. Update the package lists.

sudo apt update

3. Install VirtualBox and Linux kernel headers.

sudo apt install --no-install-recommends virtualbox-qt linux-headers-generic

4. Add your current user to group vboxusers. [1]

sudo adduser $(whoami) vboxusers

5. Done.

The procedure of installing the VirtualBox host software is complete.

Software Center (only if not using SecureBoot)

Ubuntu Software Center can be used to install VirtualBox. The process is similar to installation of most other applications.

This only works for users with computers that do not have "SecureBoot" enabled. If the user's computer is using "SecureBoot" the user need to either disable "SecureBoot" in the BIOS or use the command line based instructions. [2]

1. Open the start menu.

2. Click on the Ubuntu Software Center icon.

Figure: Ubuntu Software Center icon

Ubuntu Software icon

3. Click on the magnifying glass to search. → Type virtualbox. → Press enter. → In the search results, click on VirtualBox.

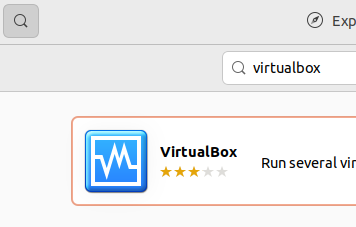

Figure: Ubuntu Software Center - Search For VirtualBox

search for virtualbox

4. Click on Install and wait.

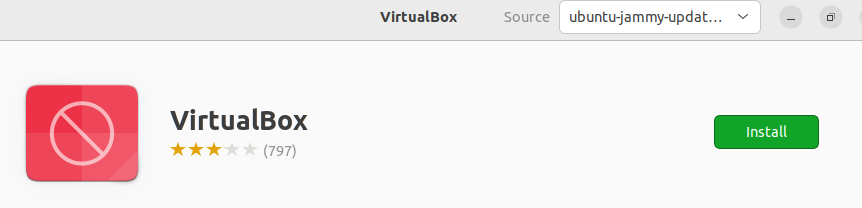

Figure: Ubuntu Software Center Search Result

Install Virtualbox

5. Installation of VirtualBox has been completed.

When the installation has completed, the install icon changes to the uninstall icon. Do not click the uninstall button.

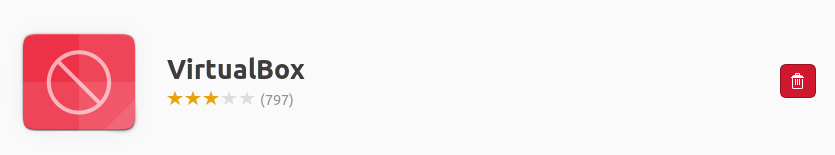

Figure: Ubuntu Software Center - VirtualBox has been installed

Uninstall Virtualbox

6. Click on Show Applications. → Click on Virtual Box start the VirtualBox graphical user interface (GUI).

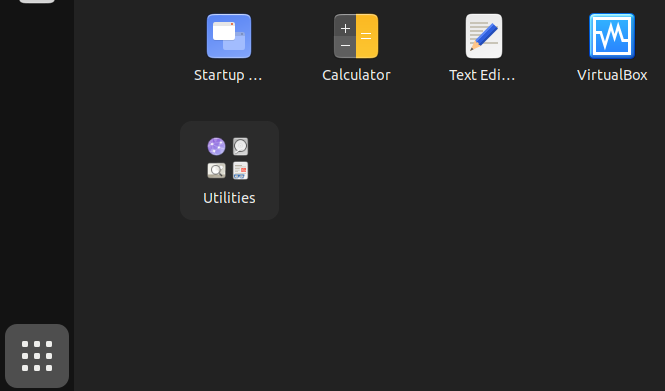

Figure: Ubuntu Software Center #4

Show Applications

7. Done.

The procedure of installing and starting VirtualBox is complete.

Debian

.

Debian host operating systems:

Chose an option from the following table. Choose either Option A) or Option B).

Option Name Details
A) Automated VirtualBox Installation Debian users could alternatively use the Kicksecure Linux Installer for VirtualBox. In this case, this wiki page can be completely ignored. No other steps from this wiki page need to be applied because the automated installer will handle everything.
B) Manual VirtualBox Installation Follow the instructions below.

Select your Debian release.

Debian bookworm (stable) or bullseye (oldstable)

To acquire the Recommended VirtualBox version tested with Kicksecure, package virtualbox-qt should be installed from Debian fasttrack repositoryarchive.org according to the following instructions. [3]

1. On the host.

Open a terminal.

2. Update the package lists.

sudo apt update

3. Install the Debian fasttrack signing key.

sudo apt install --no-install-recommends fasttrack-archive-keyring

4. Add the Debian fasttrack repository.

echo 'deb https://fasttrack.debian.net/debian/ bookworm-fasttrack main contrib non-free' | sudo tee /etc/apt/sources.list.d/fasttrack.list

5. Add Debian the backports repository. [4]

echo 'deb https://deb.debian.org/debian bookworm-backports main contrib non-free' | sudo tee /etc/apt/sources.list.d/backports.list

6. Update the package lists again. [5]

sudo apt update

7. Install VirtualBox and Linux kernel headers.

sudo apt install --no-install-recommends virtualbox-qt linux-headers-$(dpkg --print-architecture)

8. Add your current user to group vboxusers. [1]

sudo adduser $(whoami) vboxusers

9. Done.

The procedure of installing the VirtualBox host software is complete.

Debian Testing

VirtualBox can be installed by adding the Debian unstable (sid) repository and APT pinning. The details of this are unspecific to Kicksecure and undocumented.

Debian Unstable

VirtualBox can be installed by adding the Debian unstable (sid) repository.

sudo apt update

sudo apt install --no-install-recommends virtualbox-qt linux-headers-$(dpkg --print-architecture)

sudo adduser $(whoami) vboxusers

The details of this are unspecific to Kicksecure and undocumented.

Other Debian Releases

Other Debian releases might work, but this is untested. In case of other Debian release:
See also "Linux host operating systems" below.
See also "Linux" on the right.

Kicksecure

Kicksecure ™ host operating systems:

Chose an option from the following table. Choose either Option A) or Option B).

Option Name Details
A) Automated VirtualBox Installation Kicksecure ™ users could alternatively use the Kicksecure Linux Installer for VirtualBox. In this case, this wiki page can be completely ignored. No other steps from this wiki page need to be applied because the automated installer will handle everything.
B) Manual VirtualBox Installation Follow the instructions below.

Instructions for Kicksecure ™ are simpler than instructions for Debian. [6]

1. On the host.

Open a terminal.

2. Update package lists.

sudo apt update

3. Install VirtualBox and Linux kernel headers.

sudo apt install --no-install-recommends virtualbox-qt

4. Add your current user to group vboxusers. [1]

sudo adduser $(whoami) vboxusers

5. Done.

The procedure of installing the VirtualBox host software is complete.

Linux

Hosts using a non-Debian operating system:

  • Install VirtualBox as per the normal mechanism for your Linux distribution. No special instructions for Kicksecure are required. The installation of a recent VirtualBox host software is unspecific to Kicksecure. Consult the documentation of your Linux distribution.
  • Kicksecure has has been tested with, expects VirtualBox version latest.
  • For example the outdated VirtualBox version 5.2.18 is incompatible.

info General recommendations for users using Linux as a host operating system:

  • Linux kernel version:
    • The recommended host Linux kernel version is the same version that Debian bookworm is using, see linux-image-amd64archive.org.
    • Newer host Linux kernel versions are likely to break VirtualBox VMs in many ways since these are unsupported by VirtualBox. [7]
  • Host operating system: The recommended host Linux distributions are:
    • preferebly the stable version of Kicksecure ™ 17, or
    • Debian Linuxarchive.org version bookworm.

Import Kicksecure into VirtualBox

For Kicksecure VirtualBox import instructions, please press on expand on the right.

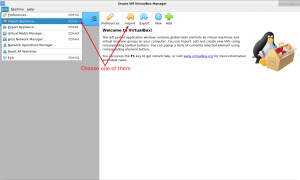

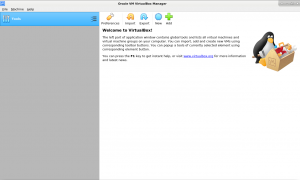

Follow these steps to import Kicksecure into VirtualBox. Click images to enlarge

Miscellaneous

There are also Video Tutorials.

If you still need help, please check the Support page.

For command line import instructions, see footnote. [8]

Start Kicksecure

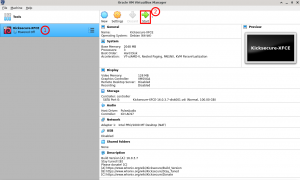

Start VirtualBoxDouble-click Kicksecure.

CLI

Kicksecure CLI in VirtualBox

  • Kicksecure with command line interface (CLI).
  • This version of Kicksecure is designed to run inside VirtualBox.
  • Kicksecure with CLI is a version suited for advanced users -- those who want Kicksecure without a graphical user interface (GUI). Everyone else should install the user-friendly Kicksecure VirtualBox with GUI Xfce.

Please follow these steps to install Kicksecure CLI for VirtualBox.

Download Kicksecure CLI

Kicksecure CLI is available for Windows, MacOS and Linux

Optional: Digital signature verification.

Version: 17.0.4.5

  • Digital signatures: A tool enhancing download security. Commonly used across the internet.
  • Learn more: Curious? Learn more about digital software signatures.
  • Optional: Digital signatures are optional. If you've never used them before, there might be no need to start now.
  • No worries: New to digital software signatures? It's okay, no need to worry.
  • Not a requirement: Not mandatory for using Kicksecure, but an extra security measure for advanced users.

How to verify the Kicksecure Images : Kicksecure virtual machine images are signed by Kicksecure developer Patrick Schleizer using OpenPGP and signify.

Do you already how to perform digital software verification using an OpenPGP and/or signify key?

Install VirtualBox

Download and install VirtualBox for your operating system.

Windows

Download VirtualBox for Windows (FREE!) WINDOWS

Optional: Digital signature verification.

VirtualBox for Windows is not signed with OpenPGP / gpg. It is signed with authenticode.

After downloading the VirtualBox installer exe and starting it, the user should verify that sure that Verified publisher: is Oracle Corporation.

Figure: Windows signature signature verification window for VirtualBox

Advanced users might wish to learn more about Authenticode (Windows Digital Software Signatures) The Web Archive Onion Version to perform a deeper verification.

macOS

Download VirtualBox for macOS (FREE!) OSX

Optional: Digital signature verification.

VirtualBox for macOS is not signed with OpenPGP / gpg. It is notarized for macOS's gatekeeper. See also Apple's official documentation Safely open apps on your Macarchive.org.

Ubuntu

Ubuntu host operating systems:

Chose an option from the following table. Choose either Option A) or Option B).

Option Name Details
A) Automated VirtualBox Installation Ubuntu users could alternatively use the Kicksecure Linux Installer for VirtualBox. In this case, this wiki page can be completely ignored. No other steps from this wiki page need to be applied because the automated installer will handle everything.
B) Manual VirtualBox Installation Follow the instructions below.

Tested on October 2022 using Ubuntu version 22.04. Older versions are not recommended.

Command Line (All Users)

1. On the host.

Open a terminal.

2. Update the package lists.

sudo apt update

3. Install VirtualBox and Linux kernel headers.

sudo apt install --no-install-recommends virtualbox-qt linux-headers-generic

4. Add your current user to group vboxusers. [1]

sudo adduser $(whoami) vboxusers

5. Done.

The procedure of installing the VirtualBox host software is complete.

Software Center (only if not using SecureBoot)

Ubuntu Software Center can be used to install VirtualBox. The process is similar to installation of most other applications.

This only works for users with computers that do not have "SecureBoot" enabled. If the user's computer is using "SecureBoot" the user need to either disable "SecureBoot" in the BIOS or use the command line based instructions. [9]

1. Open the start menu.

2. Click on the Ubuntu Software Center icon.

Figure: Ubuntu Software Center icon

Ubuntu Software icon

3. Click on the magnifying glass to search. → Type virtualbox. → Press enter. → In the search results, click on VirtualBox.

Figure: Ubuntu Software Center - Search For VirtualBox

search for virtualbox

4. Click on Install and wait.

Figure: Ubuntu Software Center Search Result

Install Virtualbox

5. Installation of VirtualBox has been completed.

When the installation has completed, the install icon changes to the uninstall icon. Do not click the uninstall button.

Figure: Ubuntu Software Center - VirtualBox has been installed

Uninstall Virtualbox

6. Click on Show Applications. → Click on Virtual Box start the VirtualBox graphical user interface (GUI).

Figure: Ubuntu Software Center #4

Show Applications

7. Done.

The procedure of installing and starting VirtualBox is complete.

Debian

.

Debian host operating systems:

Chose an option from the following table. Choose either Option A) or Option B).

Option Name Details
A) Automated VirtualBox Installation Debian users could alternatively use the Kicksecure Linux Installer for VirtualBox. In this case, this wiki page can be completely ignored. No other steps from this wiki page need to be applied because the automated installer will handle everything.
B) Manual VirtualBox Installation Follow the instructions below.

Select your Debian release.

Debian bookworm (stable) or bullseye (oldstable)

To acquire the Recommended VirtualBox version tested with Kicksecure, package virtualbox-qt should be installed from Debian fasttrack repositoryarchive.org according to the following instructions. [10]

1. On the host.

Open a terminal.

2. Update the package lists.

sudo apt update

3. Install the Debian fasttrack signing key.

sudo apt install --no-install-recommends fasttrack-archive-keyring

4. Add the Debian fasttrack repository.

echo 'deb https://fasttrack.debian.net/debian/ bookworm-fasttrack main contrib non-free' | sudo tee /etc/apt/sources.list.d/fasttrack.list

5. Add Debian the backports repository. [11]

echo 'deb https://deb.debian.org/debian bookworm-backports main contrib non-free' | sudo tee /etc/apt/sources.list.d/backports.list

6. Update the package lists again. [12]

sudo apt update

7. Install VirtualBox and Linux kernel headers.

sudo apt install --no-install-recommends virtualbox-qt linux-headers-$(dpkg --print-architecture)

8. Add your current user to group vboxusers. [1]

sudo adduser $(whoami) vboxusers

9. Done.

The procedure of installing the VirtualBox host software is complete.

Debian Testing

VirtualBox can be installed by adding the Debian unstable (sid) repository and APT pinning. The details of this are unspecific to Kicksecure and undocumented.

Debian Unstable

VirtualBox can be installed by adding the Debian unstable (sid) repository.

sudo apt update

sudo apt install --no-install-recommends virtualbox-qt linux-headers-$(dpkg --print-architecture)

sudo adduser $(whoami) vboxusers

The details of this are unspecific to Kicksecure and undocumented.

Other Debian Releases

Other Debian releases might work, but this is untested. In case of other Debian release:
See also "Linux host operating systems" below.
See also "Linux" on the right.

Kicksecure

Kicksecure ™ host operating systems:

Chose an option from the following table. Choose either Option A) or Option B).

Option Name Details
A) Automated VirtualBox Installation Kicksecure ™ users could alternatively use the Kicksecure Linux Installer for VirtualBox. In this case, this wiki page can be completely ignored. No other steps from this wiki page need to be applied because the automated installer will handle everything.
B) Manual VirtualBox Installation Follow the instructions below.

Instructions for Kicksecure ™ are simpler than instructions for Debian. [13]

1. On the host.

Open a terminal.

2. Update package lists.

sudo apt update

3. Install VirtualBox and Linux kernel headers.

sudo apt install --no-install-recommends virtualbox-qt

4. Add your current user to group vboxusers. [1]

sudo adduser $(whoami) vboxusers

5. Done.

The procedure of installing the VirtualBox host software is complete.

Linux

Hosts using a non-Debian operating system:

  • Install VirtualBox as per the normal mechanism for your Linux distribution. No special instructions for Kicksecure are required. The installation of a recent VirtualBox host software is unspecific to Kicksecure. Consult the documentation of your Linux distribution.
  • Kicksecure has has been tested with, expects VirtualBox version latest.
  • For example the outdated VirtualBox version 5.2.18 is incompatible.

info General recommendations for users using Linux as a host operating system:

  • Linux kernel version:
    • The recommended host Linux kernel version is the same version that Debian bookworm is using, see linux-image-amd64archive.org.
    • Newer host Linux kernel versions are likely to break VirtualBox VMs in many ways since these are unsupported by VirtualBox. [14]
  • Host operating system: The recommended host Linux distributions are:
    • preferebly the stable version of Kicksecure ™ 17, or
    • Debian Linuxarchive.org version bookworm.

Import Kicksecure into VirtualBox

For Kicksecure VirtualBox import instructions, please press on expand on the right.

Follow these steps to import Kicksecure into VirtualBox. Click images to enlarge

Miscellaneous

There are also Video Tutorials.

If you still need help, please check the Support page.

For command line import instructions, see footnote. [15]

Start Kicksecure

Start VirtualBoxDouble-click Kicksecure.

First Time User / Questions and Answers

First Time User / Questions and Answers[edit]

Kicksecure default admin password is: changeme

  • Default username: user
  • Default password: changeme

first time users warning Warning:

If you have no idea how Kicksecure works, then read the Design and Goals, Kicksecure Limitations and Tips on Remaining Safe pages to decide whether Kicksecure is the right tool for you based on its limitations.

Footnotes

Footnotes[edit]

  1. 1.0 1.1 1.2 1.3 1.4 1.5 Optional: See: https://www.virtualbox.org/manual/ch02.html#install-linux-vboxusersarchive.org Also spams ~/.config/VirtualBox/VBoxSVC.log log if not done.
  2. This is unspecific to Kicksecure. This is because during package installation of a package that requires kernel modules when "SecureBoot" is enabled, Ubuntu's dkms is prompting the user for a password to encrypt the key which will be used to enroll the kernel module signing key. This is Ubuntu usability issue. It is unknown if any bug report / feature request for this exists. Please contribute, research, report this issue on Ubuntu's issue tracker.
  3. This is non-ideal The Web Archive Onion Version but required since VirtualBox in unavailable in official Debian bookworm repository and difficult to install due to VirtualBox Installation Challenges. Alternatively you could install VirtualBox from the Oracle (virtualbox.org) Repository, but this comes with different risks. VirtualBox might be updated by VirtualBox developers before being tested with Kicksecure which could then lead to issues. (Described in footnote here.)
  4. This is required because the Debian fasttrack repository depends on the Debian the backports repository.
  5. This is to acquire the Debian fasttrack repository package sources.
  6. This is because by Kicksecure ™ default:
  7. https://www.virtualbox.org/ticket/17055#comment:3archive.org
  8. On the Linux platform.
    1. Read License Agreement: vboxmanage import Kicksecure-Xfce-17.0.4.5.ova --vsys 0 --eula show --vsys 1 --eula show 2. Import Kicksecure. vboxmanage import Kicksecure-Xfce-17.0.4.5.ova --vsys 0 --eula accept --vsys 1 --eula accept
  9. This is unspecific to Kicksecure. This is because during package installation of a package that requires kernel modules when "SecureBoot" is enabled, Ubuntu's dkms is prompting the user for a password to encrypt the key which will be used to enroll the kernel module signing key. This is Ubuntu usability issue. It is unknown if any bug report / feature request for this exists. Please contribute, research, report this issue on Ubuntu's issue tracker.
  10. This is non-ideal The Web Archive Onion Version but required since VirtualBox in unavailable in official Debian bookworm repository and difficult to install due to VirtualBox Installation Challenges. Alternatively you could install VirtualBox from the Oracle (virtualbox.org) Repository, but this comes with different risks. VirtualBox might be updated by VirtualBox developers before being tested with Kicksecure which could then lead to issues. (Described in footnote here.)
  11. This is required because the Debian fasttrack repository depends on the Debian the backports repository.
  12. This is to acquire the Debian fasttrack repository package sources.
  13. This is because by Kicksecure ™ default:
  14. https://www.virtualbox.org/ticket/17055#comment:3archive.org
  15. On the Linux platform.
    1. Read License Agreement: vboxmanage import Kicksecure-Xfce-17.0.4.5.ova --vsys 0 --eula show --vsys 1 --eula show 2. Import Kicksecure. vboxmanage import Kicksecure-Xfce-17.0.4.5.ova --vsys 0 --eula accept --vsys 1 --eula accept

notice This is a pre-release. (What does that mean?)


Unfinished: This wiki is a work in progress. Please do not report broken links until this notice is removed, use Search Engines First and contribute improving this wiki.

We believe security software like Kicksecure needs to remain open source and independent. Would you help sustain and grow the project? Learn more about our 10 year success story and maybe DONATE!
