Slow? → Try General VirtualBox Troubleshooting Steps. Failed to open a session for the virtual machine / NS_ERROR_FAILURE (0x80004005)See this.
VERR_VMX_MSR_VMXON_DISABLED / VERR_NEM_NOT_AVAILABLEEnable VT-x in BIOS settings. E_INVALIDARG (0x80070057)See this.
Black screen? → See this. Aborted Status? → See this. Guru Mediation? → See this.

Topics on this page are sorted roughly in order of issue prevalence. More common issues are on top.

General VirtualBox Troubleshooting Steps[edit]

Ambox notice.png In many situations, the following steps will fix VirtualBox issues.

  1. General Troubleshooting for issues such as VM freezing.
  2. In case of connectivity issues, see Connectivity Troubleshooting.
  3. Kicksecure-basic-logo.png Use the stable version of Kicksecure ™ for VirtualBox 16.0.5.3.
  4. Computer n screen.png Virtualbox logo.png Use the recommended VirtualBox host software version, which is currently: latest
  5. Cli3.png Virtualbox logo.png To ensure the recommended version of VirtualBox guest additions is installed in Kicksecure ™ run:
    sudo apt update && sudo apt full-upgrade
  6. Cd-rom-icon.png Virtualbox logo.png Do not use VirtualBox guest additions from CD. [1]
  7. Logo-linux-500x500.png Linux users only: Host kernel version: use the recommended host Linux kernel version. It should be the same version that Debian bullseye is using (linux-image-amd64). Otherwise many kernel issues are likely to occur.
  8. Logo-linux-500x500.png Linux users only: Host operating system: use a recommended Linux distribution -- Debian bullseye or Kicksecure ™ 16 -- as the host operating system.
  9. Logo-linux-500x500.png Linux users only: Linux user groups: Add your current user to group vboxusers. [2]
    sudo adduser $(whoami) vboxusers
  10. Logo-windows-500x500.png Windows users only: Host operating system: Consider running Kicksecure ™ from a Linux computer rather than Windows computer. [3]
  11. Virtualizers Conflicts: Do you have virtualizers other than VirtualBox installed at the same time such as Vmware.jpeg VMware, Hyper-V or Kvm-new-logo.png KVM? If you never heard of these product names or do not know what that means then this is not an issue, But if you have multiple virtualizers/hypervisors installed its preferable to use only one (in this section only virtualbox) see the footnote for further information. [4]
  12. Low RAM Issues: Perhaps a Low RAM issue? Free up Additional Memory Resources and try Kicksecure ™ CLI RAM Saving Mode as per Advice for Systems with Low RAM.
  13. Hardware Issues: Exclude basic hardware issues.
  14. RAM Hardware Issues: Run memtestx86+.
  15. Try a non-Kicksecure ™ VM.
  16. VirtualBox Generic Bug Reproduction
  17. Logo-windows-500x500.png Windows 10 users only: Hash Sum mismatch: Disable Core Isolation.

Linux Host Kernel versus Tor Browser and other Crashes[edit]

This issue happens after a Linux host kernel upgrade. Common symptoms of this issue are:

ERROR: Tor Browser ended with non-zero (error) exit code!

Tor Browser was started with:

/home/user/.tb/tor-browser/Browser/start-tor-browser --verbose --allow-remote .

Tor Browser exited with code: 139

This is fixed since VirtualBox version 6.1.36 and above. For installation instructuctions, see recommended VirtualBox version.

Forum discussion: https://forums.whonix.org/t/tor-browser-crashing-in-whonix-virtualbox-since-upgrade-to-host-linux-kernel-version-5-10-0-15/13767

Failed to open a session for the virtual machine[edit]

If you see the following error message:

Failed to open a session for the virtual machine Kicksecure ™-XFCE

Click details. If Result Code: NS_ERROR_FAILURE (0x80004005) is shown, then this chapter applies.

Should be fixed in VirtualBox version 6.1.22 and above.

This occurs with all Kicksecure ™ VirtualBox versions up to version 15.0.1.7.2 when using VirtualBox version 6.1.20. VirtualBox version 6.1.20 solution:

  • VirtualBoxSettingsStorageType: AHCIOK [5]
  • Other settings remain unchanged.

This setting is the default in Kicksecure ™ version 15.0.1.7.3 and above (Point Release).

Note this setting might cause High Disk Usage Causing Filesystem Corruption on some (slower) hardware configurations due to a VirtualBox host software bug, High I/O causing filesystem corruption. This is speculation and unavoidable because there is no other solution at present. The High Disk Usage Causing Filesystem Corruption chapter has approaches which might fix this issue if it manifests.

To avoid issues like Failed to open a session for the virtual machine in the future, use the the recommended version of the VirtualBox host software and Stay Tuned.

Forum discussion: Kicksecure ™ VirtualBox - failed to start - NS_ERROR_FAILURE (0x80004005) - The VM session was aborted.

VirtualBox upstream bug report: VM Machine wont to start after upgrade to 6.1.20

VT-x[edit]

VERR_SSM_FIELD_NOT_CONSECUTIVE[edit]

If the "Failed to load unit 'PATM' (VERR_SSM_FIELD_NOT_CONSECUTIVE)." error appears, VT-x must be enabled in BIOS settings, see instructions.

VT-x is disabled in BIOS[edit]

If the following error message appears.

Failed to open a session for the virtual machine Kicksecure-XFCE.

VT-x is disabled in the BIOS.
(VERR_VMX_MSR_VMXON_DISABLED).

Or.

AMD-V is disabled in the BIOS (or by the host OS).
(VERR_SVM_DISABLED).

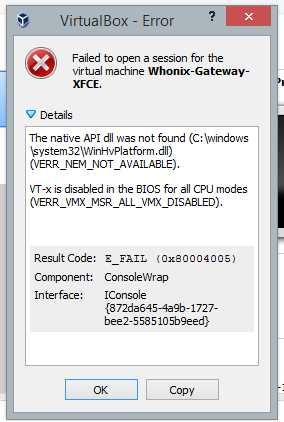

Figure: VERR_VMX_MSR_VMXON_DISABLED / VERR_NEM_NOT_AVAILABLE

VERR_VMX_MSR_VMXON_DISABLED VERR_NEM_NOT_AVAILABLE

Then enable VT-x in BIOS settings.

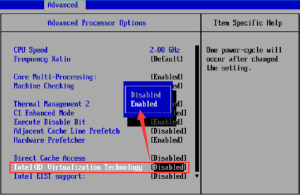

Enable VT-x in BIOS[edit]

Go to your BIOS settings. For basic instructions, see: How to Change Computer BIOS Settings.

Then enable VT-x. This is sometimes also called AMD-V, virtualization, SVM mode or MIT perhaps under Advanced Core settings.

Updating/Upgrading while VM are Running[edit]

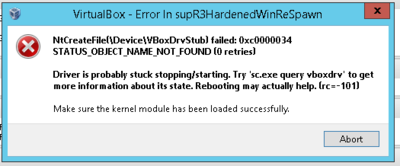

Error In supR3HardenedWinReSpawn[edit]

VirtualBox supR3HardenedWinReSpawn.png
Do not update whilst the VM are running, otherwise VirtualBox must be reinstalled.

VMMR0InitVM: Revision mismatch[edit]

debian kernel: VMMR0InitVM: Revision mismatch, r3=132055 r0=130347

This happens when upgrading VirtualBox on the host while existing VM are still running. The solution is to shut down and restart all VM.

Disk Space[edit]

E_INVALIDARG (0x80070057)[edit]

This might relate to a low disk space issue -- unspecific to Kicksecure ™ -- research the issue further with search engines.

Non-functional Shared Clipboard and Drag and Drop[edit]

If the shared clipboard and drag’n’drop to/from host is non-functional, this can relate to the version of guest additions installed in Kicksecure ™ and/or the version of VirtualBox running on the host. [6]

  1. Apply General VirtualBox Troubleshooting Steps.
  2. VirtualBoxSettingsGeneralAdvanced tab'Check' shared clipboard and drag and drop

It might still not work, see: VirtualBox Guest Additions Bugs Reporting.

Screen Issues[edit]

Screen Resolution Bug[edit]

VirtualBox Screen Resolution Bug

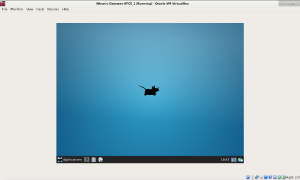

Normal presentation

If the display presents like the image on the right-hand side, then you are affected by a screen resolution bug which only occurs in VirtualBox.

To correct the resolution, first apply the General VirtualBox Troubleshooting Steps.

If the issue still persists, try one of the following workarounds to correct the resolution.

VirtualBox Virtual Screen Menu Workaround

  1. Power off the VM.
  2. Restart the VM.
  3. Maximize the VM window after start of the VM as soon as possible.
  4. VirtualBox VM WindowViewVirtual Screen 1Choose any, resize to another resolution
  5. VirtualBox VM WindowViewAuto-resize Guest Display

Desktop Resolution Settings Workaround

If the method above did not work, another option is the following. Inside the virtual machine:

XFCE Start MenuSettingsDisplayResolution:Choose a higher resolution resolutionApply


VirtualBox VMSVGA Graphics Controller Setting Workaround

If it still does not work, a final option is the following.

Inside the virtual machine [7]:

On the host:

  1. Power off the VM.
  2. VirtualBoxclick a VMSettingsDisplayGraphics ControllerVMSVGAOK (This is already the case in newer Kicksecure ™ versions.)
  3. VirtualBoxclick a VMSettingsDisplayGraphics Controllerincrease slider for Video Memory to 128OK (This is already the case in newer Kicksecure ™ versions.)
  4. Restart the VM.
  5. Maximize the VM window after start of the VM as soon as possible.
  6. If necessary, try again one of above workarounds.

VirtualBox Guest Additions Bugs Reporting

Occasionally screen resolution problems might still persist, see: VirtualBox Guest Additions Bugs Reporting.

Black Screen[edit]

If a black screen appears, try the following possible solutions.

  1. Install the recommended version of the VirtualBox host software.
  2. Apply the General VirtualBox Troubleshooting Steps.
  3. Reboot.
  4. If the issue persists, try the following workarounds.

If this solution or any of the workarounds worked for you, please report this in Kicksecure ™ forums.


Workaround 1: Try Other VirtualBox Virtual Graphics Controller Settings

  1. Power off the VM.
  2. VirtualBoxclick a VMSettingsDisplayGraphics ControllerVMSVGAOK (Or try other settings there.) [8]
  3. VirtualBoxclick a VMSettingsDisplayGraphics Controllerincrease slider for Video Memory to 128OK (This is already the default in recent releases of Kicksecure ™.)
  4. Restart the VM.

Workaround 2: Boot Once Without Virtual Graphics Adapter

This workaround has been reported as functional on a Windows 10 host with both Intel and nVidia GPU capabilities. It is okay to try this workaround on any host operating system.

  1. Power off the VM.
  2. VirtualBoxclick a VMSettingsDisplayGraphics ControllerNoneOK
  3. Start the VM. Wait 2-3 minutes. (Since the display is disabled, you will see nothing happening)
  4. Click the VirtualBox pane's [X] button. VirtualBox will offer a dialog with 3 options. If Send Shutdown signal is greyed out, cancel the dialog and try this step again every 10-20 seconds.
  5. Send Shutdown signal. If it does not shut down immediately, wait a short time and try again.
  6. Once the VM shuts down, restore the Graphics Controller to VMSVGA.
  7. Restart the VM.

If this workaround succeeds, the screen will again be black for 2-3 minutes, but then chkdsk will run and the VM should start normally.


Workaround 3: nomodeset Kernel Parameter

Try to boot with the nomodeset kernel parameter. If that works, please post a forum report and then make the change permanent. [9]


Workaround 4: Virtual Console

If it is possible to switch to a virtual console, this can help with debugging.

Slow Video Playback[edit]

Possible solutions:

  1. Untested: Try downloading a video using youtube-dl (.onion) and then play the video in VLC.
  2. Tested: Consider Tuning, specifically enable hardware-accelerated graphics. Note that this configuration worsens security.
  3. Untested: Consider disabling CPU mitigations. This configuration also worsens security.

It is unknown whether enabling VirtualBox hardware-accelerated graphics (3D Acceleration) or disabling CPU mitigations is worse for security. Contributors are asked to research this issue (Free Support Principle) and report what is found in a dedicated forum thread.

Miscellaneous[edit]

Host Crash[edit]

See the Aborted Status instructions below.

Aborted Status[edit]

If the virtual machine ever shows an aborted status, perform these steps:

  1. Try to Assign Less Virtual CPUs; this may help to avoid the issue.
  2. Apply General VirtualBox Troubleshooting Steps.
  3. Consider reporting a bug against upstream VirtualBox -- VirtualBox bugtracker / VirtualBox forums. VirtualBox developers require logs to identify the problem. [10]

Kicksecure ™ provides VM image that operate inside of the VM. Whatever occurs inside a VM should never lead to a crash (status aborted) of the host virtualization software, VirtualBox.

Recommended steps:

  1. To capture the VirtualBox log: VirtualBoxright click a VMShow Log...LogSaveOK
  2. Zip the log.
  3. Report to VirtualBox support.
  4. Share the VirtualBox support request link in Kicksecure ™ forums.

Guru Mediation[edit]

Kicksecure ™ provides VM image that operate inside of the VM. Whatever occurs inside a VM should never lead to a Guru Mediation of the host virtualization software, VirtualBox.

Posting a screenshot of the Guru Mediation screen is probably not required since these all look very similar. [11]

VirtualBox Guru Meditation

A critical error has occurred while running the virtual machine and the machine execution has been stopped.

For help, please see the Community section on https://www.virtualbox.org or your support contract. Please provide the contents of the log file VBox.log and the image file VBox.png, which you can find in the /home/sk/VirtualBox VMs/Ubuntu 20.04 Server/Logs directory, as well as a description of what you were doing when this error happened. Note that you can also access the above files by selecting Show Log from the Machine menu of the main VirtualBox window.

Press OK if you want to power off the machine or press Ignore if you want to leave it as is for debugging. Please note that debugging requires special knowledge and tools, so it is recommended to press OK now.

This example text does not contain any technical details which could help to fix the issue, since VirtualBox Guru Meditation can occur for many reasons.

Without log contents, developers will probably be unable to help.

  1. Apply General VirtualBox Troubleshooting Steps.
  2. Consider inspecting the log yourself. Use search engines to try and locate any similar or identical error messages. Usually the issue will already have been reported, and a solution might be documented in the same place. It is recommended to search the offical VirtualBox website because most VirtualBox developers and experts will utilize this resource. The following search term will limit search results to the VirtualBox website (this is a feature which most search engines support): site:virtualbox.org error message here. [12]
  3. Consider reporting a bug against upstream VirtualBox -- VirtualBox bugtracker / VirtualBox forums. VirtualBox developers require logs to investigate the problem. [10]

Recommended steps:

  1. To capture the VirtualBox log: VirtualBoxright click a VMShow Log...LogSaveOK
  2. Zip the log.
  3. Report to VirtualBox support.
  4. Share the VirtualBox support request link in Kicksecure ™ forums.

NS_ERROR_FAILURE[edit]

NS_ERROR_FAILURE (0x80004005)

Quote VirtualBox forum moderator

NS_ERROR_FAILURE (0x80004005) is a general failure message when loading a VM. Subsequent lines in the error dialog will give the exact cause of the error. You do NOT have the same error just because you see the generic leader. If you don't provide a log or the supplemental error description then we can't help you.

While this is not the same error as Guru Mediation, all the same information and advice from that chapter applies. Therefore please follow chapter Guru Mediation.

Kernel driver not installed[edit]

error happening in case Linux kernel headers package (linux-headers-amd64) is missing
output of sudo vboxconfig in case Linux kernel headers package (linux-headers-amd64) is missing

Kernel driver not installed (rc=-1908)

If this occurs on Linux based host operating systems, then it is likely the Linux headers package matching the currently running Linux image package is not installed. To attempt to fix the issue:

1. Go to the Recommended VirtualBox Version wiki page.

2. Press the expand button for your operating system.

If you Linux, press the Expand button on that wiki page.

Once expanded, the recommended instructions will explain how to install VirtualBox for select Linux distributions as well as generic recommendations for other Linux distributions.

4. Apply the installation instructions from that wiki page.

5. Issue resolved?

This issue is unspecific to Kicksecure ™. Any VM from any vendor and/or self-created VM will fail to start, not just Kicksecure ™ VM. This is because it is a host operating system and VirtualBox issue. If the instructions above did not fix the issue, then try accessing further support resources including the Try a non-Kicksecure ™ VM chapter.

6. Support requests.

For support requests, please provide the following debug output. Is package linux-headers-amd64 installed? To check, run:

dpkg -l | grep linux-headers-amd64

Is package linux-image-amd64 installed? To check, run:

dpkg -l | grep linux-image-amd64

Assign Less Virtual CPUs[edit]

Try assigning less virtual CPUs. [13]

In Kicksecure ™ 15.0.1.3.4 and above 3 virtual CPUs is now the default setting; 4 were previously used. As a result, this workaround should no longer be required for most users.

  1. Power off the VM.
  2. VirtualBoxclick a VMSettingsSystemProcessorReduce to 3OK

INCONSISTENCY BETWEEN GRAIN TABLE AND BACKUP GRAIN TABLE[edit]

If this error appears, sometimes it helps to:

  1. Try and convert the vmdk to vdi.
  2. Remove the old vmdk from the VM.
  3. Attach the new vdi.

High Disk Usage Causing Filesystem Corruption[edit]

This is a VirtualBox host software bug, High I/O causing filesystem corruption.

The following settings cannot fix already existing filesystem corruption inside the virtual harddrive. However, these settings might prevent future filesystem corruption. Therefore the best time to experiment with these settings is before starting a virtual machine for the first time or at least before issues appear.

Enabling Host I/O Cache might help as it was reported by a user on the VirtualBox issue tracker.

VirtualBoxSettingsStorageName: SATAType: AHCI → enable Use Host I/O CacheOK

Experimenting with other virtual machine hardware settings might also help.

VirtualBoxSettingsStorageName: → experiment with other settings → OK

Maybe Type: virtio-scsi could help.

Other settings that might help:

Try to tune host os page flusher behavior to avoid accumulating of significant amount of dirty pages in host file system buffers. For example, set vm.dirty_background_ratio to 5 or below (this is still large size - about 1Gb) or set vm.dirty_background_bytes to something smaller like 20971520 to make page flusher more active. Note that this may make host file system cache less effective, but it prevents write operation stuck during buffer flush.

References:

Import Kicksecure ™ Image[edit]

Using the VirtualBox GUI to import Kicksecure ™ image should work well in most cases. If not, follow the steps below.

1. Check if there is enough free disk space.

2. Refer to the Kicksecure ™ installation screenshots (VirtualBox/XFCE and click expand button) and/or Video Tutorials.

3. Delete any half-imported or otherwise broken virtual machine image.

4. Use the VBoxManage command line tool and copy the output.

VBoxManage unregistervm "Kicksecure-XFCE" --delete

5. Navigate to the folder where Kicksecure ™ was downloaded and import Kicksecure ™ by using the VBoxManage command line tool.

VBoxManage import Kicksecure-XFCE-16.0.5.3.ova

6. Clean the output.

Remove operating system user name or any problematic paths.

7. Contact lead Kicksecure ™ developer Patrick Schleizer and send the output.

No Sound in Kicksecure ™[edit]

If sound is unavailable in Kicksecure ™ when using VLC or browsing Internet sites, try: [14]

SettingsAudioHost audio driverSelect Also audio [15]

Core Isolation[edit]

Host operating system specific:

  • Logo-linux-500x500.png Linux users: No special steps required. This chapter should be skipped.
  • Logo-windows-500x500.png Windows 10 users: This should be fixed in recent VirtualBox versions. [16] Disabling core isolation should be no longer required. In case of issues, the user could try to disable core isolation anyhow.

Core Isolation is also called Windows Hypervisor-enforced Code Integrity (HVCI).

Start MenuSettingsUpdate & securityWindows SecurityDevice security → Core isolation details, turn off Memory integrity → reboot the host operating system

Related: forum discussion on Windows core isolation

Try a non-Kicksecure VM[edit]

  1. "Forget" about Kicksecure ™ for a moment and imagine you had never heard of the platform. Test the VirtualBox host software first.
  2. Try a VM other than Kicksecure ™, for example Debian bullseye.
  3. If that does not fix the issue, that means the root issue is not caused by Kicksecure ™. In other words, the issue is unspecific to Kicksecure ™. In that case it is recommended to try and resolve the issue as per Free Support Principle.

VirtualBox Generic Bug Reproduction[edit]

This entry is based on Bug Report Recommendations, specifically Generic Bug Reproduction. The content is similar to the Try a non-Kicksecure ™ VM chapter above.

The following is a manual reproduction of the Kicksecure ™ VirtualBox Integration.

1. Use the recommended (.onion) Linux distribution -- Debian bullseye -- as the host operating system. (Debian Tips) During installation, preferably choose the same desktop environment that Kicksecure ™ is using, which is Xfce at time of writing.

2. Install the recommended version of the VirtualBox host software and follow the instructions from that wiki page.

3. Install Debian bullseye inside a VirtualBox VM.

4. Install the VirtualBox Guest Additions from the Debian fasttrack repository inside the VirtualBox VM.

A) Inside the VirtualBox VM.

Open a terminal.

B) Add the Debian fasttrack repository.

Update the package lists.

sudo apt update

C) Install the Debian fasttrack signing key.

sudo apt install fasttrack-archive-keyring

D) Add the Debian fasttrack repository.

echo 'deb https://fasttrack.debian.net/debian/ bullseye-fasttrack main contrib non-free' | sudo tee /etc/apt/sources.list.d/fasttrack.list

E) Update the package lists again. [17]

sudo apt update

F) Install the VirtualBox Guest Additions.

sudo apt install virtualbox-guest-x11

G) Reboot required.

sudo reboot

H) VirtualBox Guest Additions should now be installed.

The procedure of installing the VirtualBox Guest Additions is complete.

5. Attempt to reproduce the original issue.

  • A) If the original issue is reproducible: That means the root issue is not caused by Kicksecure ™. In other words, the issue is unspecific to Kicksecure ™. In that case it is recommended to try and resolve the issue as per Free Support Principle. If a solution was found, please consider editing the Kicksecure ™ Documentation as a small contribution and/or providing a complete answer in the Kicksecure ™ User Forums.
  • B) If the original issue is not reproducible: Please report this in Kicksecure ™ forums.

The following deprecated instructions chapter VirtualBox Generic Bug Reproduction using virtualbox-guest-additions-iso is probably not required but kept here in case it will be needed again in the future.

Submit a Bug Report[edit]

When reporting an issue in the Kicksecure ™ forums, please add the exact steps which led to the problem. Also include as much relevant information as possible; see below.

  • Which Kicksecure ™ version was downloaded and from where?
  • Do other non-Kicksecure ™-VMs have this issue?
  • Did you:
    • Only download, import Kicksecure ™ VM and start Kicksecure ™?; or
    • Did you start and use Kicksecure ™ then installed more software and perform other activities before the issues emerged?
  • Have you previously used older versions of Kicksecure ™ that worked?
  • What is the host operating system and version?
  • What is the VirtualBox version?
  • How much RAM does the host have?
  • In case of black screen issues:

Bugs can also be reported against upstream VirtualBox: VirtualBox bugtracker / VirtualBox forums. Bug reports must be well written and thorough otherwise it will not lead to a solution, see: bug reporting instructions.

See Also[edit]

Footnotes[edit]

  1. Installation of VirtualBox guest additions from CD might also cause issues.
  2. Optional: See: https://www.virtualbox.org/manual/ch02.html#install-linux-vboxusers Also spams ~/.config/VirtualBox/VBoxSVC.log log if not done.
  3. A user reported issues which were gone once switching to Linux.
  4. Virtualizers are incompatible with co-installation of other virtualizers at the same time. This is virtualizer specific, not a Kicksecure ™ specific limitation. Uninstall any other virtualizers and perhaps re-install VirtualBox if it still not functional. https://forums.whonix.org/t/starting-xcfe-virtualbox-give-guru-meditation/10378/6
  5. For reasons, see Storage Controller Setting.
  6. VirtualBox VMSVGA graphics controller is based on the VMware graphics controller.
  7. VBoxManage modifyvm Kicksecure-XFCE --graphicscontroller vmsvga
    VBoxManage modifyvm Kicksecure-XFCE --graphicscontroller vboxvga
    VBoxManage modifyvm Kicksecure-XFCE --graphicscontroller vboxsvga
  8. https://forums.whonix.org/t/whonix-cli-15-0-0-9-4-gateway-shows-a-black-screen/9174/2
  9. 10.0 10.1 Reasons of vm to get into "aborted" state:

    Would you mind sharing with us one of those logs so that we can judge for ourselves? From a machine that got aborted? ZIP it before using the "Upload attachment" at the bottom of your reply form.

  10. http://www.fixedbyvonnie.com/wp-content/uploads/2014/09/fixedbyvonnie-virtualbox-guru-meditation.png
  11. Replace error message here with the issue being investigated.
  12. VirtualBox ticket: VirtualBox should now prohibit assigning all physical CPUs to a VM and/or fix VirtualBox CPU assignment manual.
  13. Kicksecure ™ workstation no sound
  14. If may also be necessary to install alsamixergui.
  15. Fixed in VirtualBox version 6.1.32 (and above). Quote VirtualBox changelog:

    VMM: Changed the guest RAM management when using Hyper-V to be more compatible with HVCI (bug #20627 and #20694)

  16. This is to acquire the Debian fasttrack repository package sources.


Unfinished: This wiki is a work in progress. Please do not report broken links until this notice is removed, use Search Engines First and contribute improving this wiki.
